Dutch Weave Wire Mesh

Dutch weave wire mesh, also called dense weave mesh, uses different warp and weft wire diameters to create a compact filtration aperture for demanding industrial separation.

Inquire this productBack to products
Dutch Weave Wire Mesh
Porous media

Dutch Weave Wire Mesh

Dense stainless woven mesh for precision filtration, polymer melt screens, and screen packs.

Wire clothDutch weave meshMetal fiberPorous plate
Polymer meltChemical filtrationScreen packs

Key features

  • Dense woven structure provides fine retention and strong pressure resistance.
  • Available in plain Dutch, twilled Dutch, and reverse Dutch weave patterns.
  • Can be cut, layered, welded, framed, or formed into discs and cylinders.

Common specifications

  • Materials: 304, 316L, 904L, duplex stainless steel, or nickel alloy.
  • Forms: rolls, sheets, discs, screen packs, cylinders, and custom assemblies.
  • Key data: weave type, mesh count, wire diameter, micron rating, and open area.
Selection notesBest quoted with target particle size, operating pressure, temperature, material grade, and whether the buyer needs rolls, discs, or finished screen packs.

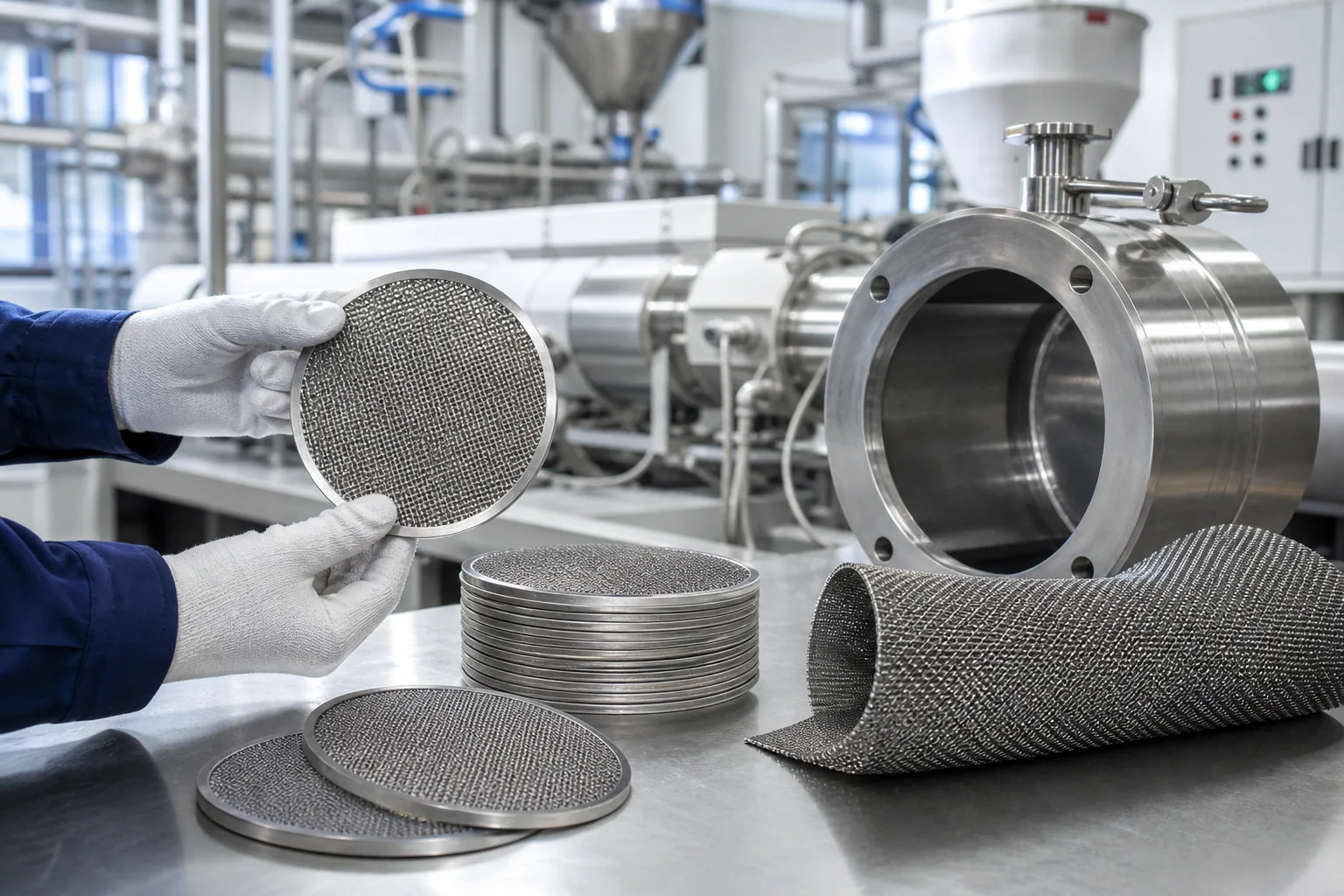

Polymer melt and chemical process screen packs
Application scenario

Polymer melt and chemical process screen packs

Dutch weave wire mesh uses fine weft wires and stronger warp wires to create a dense, stable aperture structure for precision filtration under pressure.

Application highlights

  • Used in polymer melt screens, chemical filtration, hydraulic protection, and process screen packs.
  • Dense weave supports fine particle retention while maintaining metallic strength.
  • Plain Dutch, twilled Dutch, and reverse Dutch weave can be selected by flow and retention target.

Engineering support

  • Mesh specification is selected by wire diameter, weave type, nominal micron rating, and open area.
  • Can be supplied as rolls, cut pieces, discs, cylinders, multi-layer packs, or welded assemblies.
  • Edge treatment can include spot welding, seam welding, crimped rim, or framed construction.

RFQ checklist

  • Weave type, mesh count, wire diameter, material grade, and filtration target.
  • Roll width, sheet size, disc diameter, pack layers, and edge treatment.
  • Medium, temperature, pressure drop target, and cleaning method.
